SLITTING & CUT-TO-LENGTH EQUIPMENT

SPECIFICATIONS:

MFG:  YODER
Right to Left mode of operation

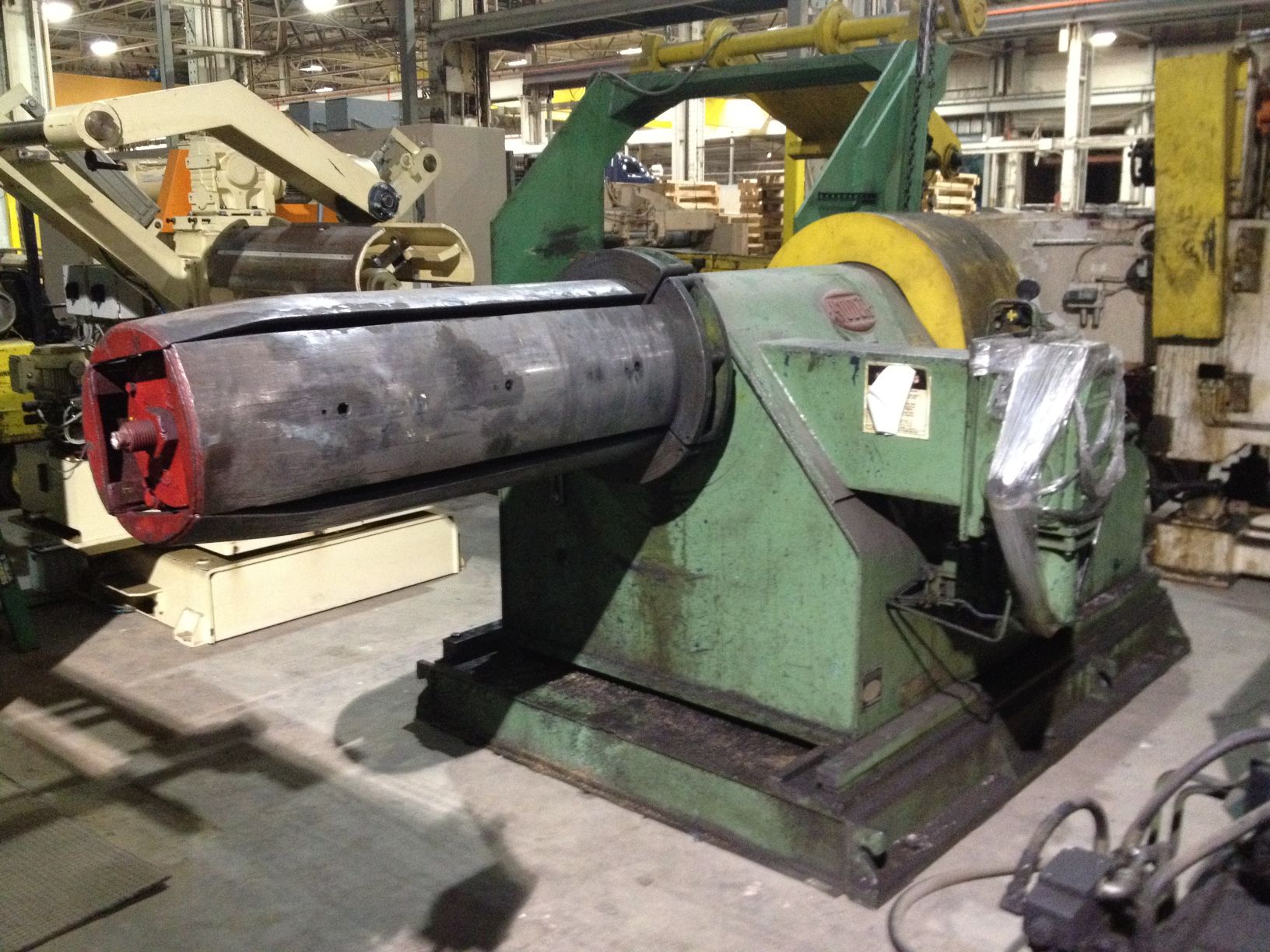

Uncoiler
S/N: Y5740-470
40,000# capacity
20" ID x 51" face Mandrel
Hydraulic expansion
Wichita brake
Slide base
Hydraulic feed up motor with self enclosed power unit
Aprox. 48" from centerline of mandrel to floor

Yoder Slitter Head
5.5" diameter
51" face Arbor
Nutall reducer: 14.36:1 ratio
50 HP DC motor, 1150/2000
CMC Pacemaster 6 Drive in Cabinet
  for slitter
No Tooling

Recoiler
S/N: Y5740-770
40,000# capacity
20" ID x 64" face Drum
Manual grip and expansion
Hydraulic push-off
50" Separator shaft
125 HP ABB AC motor, 1783 RPM with ABB Drive
H&S reducer, size 150-D210, 17.42:1, 100 HP rating, 530RPM input,
             1.0 service factor, s/n: L-504
11" shaft

1 Arm Turnstile
S/N: Y 5740 1170
67.5" arm length
20" ID min.
6" w x 15 deep channel for C-hook use
Hydraulic push-off
90" from end of arm to  center line of bearing
169" overall length
52.5 floor to top of turnstile



ABB Drive in Cabinet
380-500V., 180 a, 3ph
ACS 800 UI 0140 SD150
for recoiler











PRICE....................:  SEND A QUOTATION!!!
